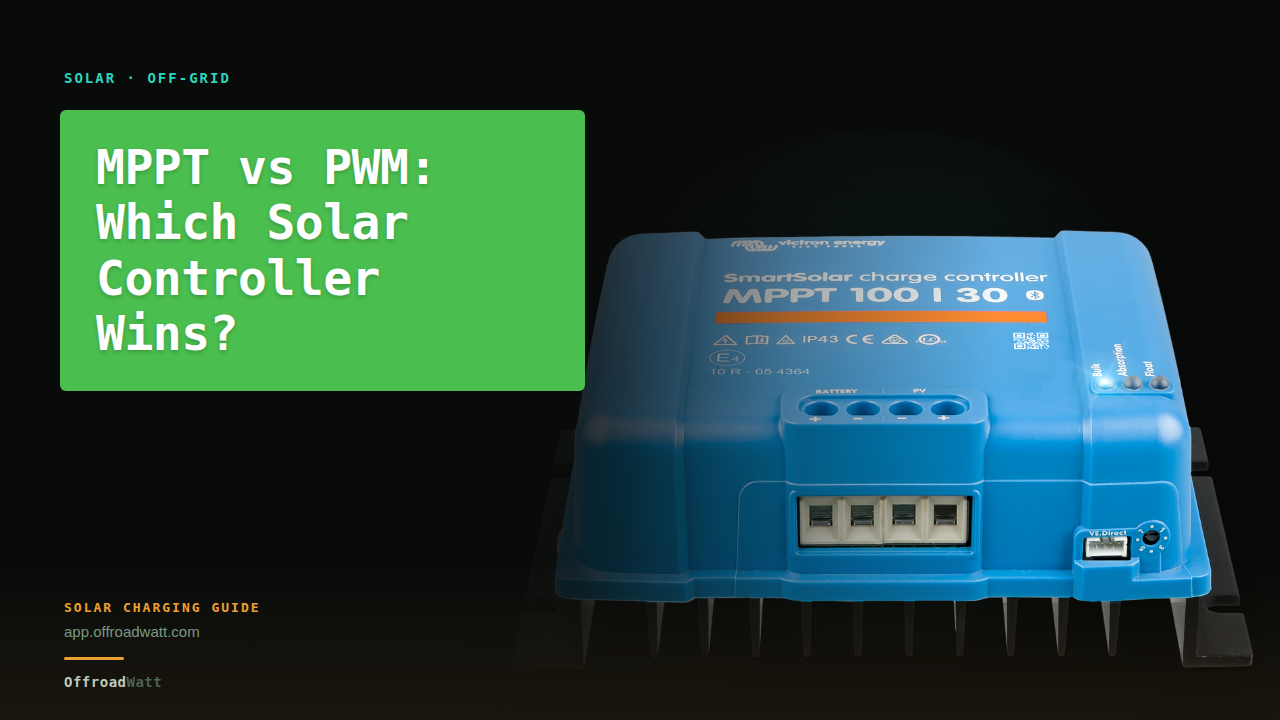

MPPT vs PWM Solar Controller: Which One for Your Campervan?

The solar charge controller sits between your panels and your battery, and it quietly decides how much of the sun's energy you actually get to keep. Pick the wrong type and you could be throwing away 20–30% of your solar harvest every single day. This guide explains the two technologies — MPPT and PWM — in plain language, compares them side by side, and tells you exactly when each one makes sense.

1. What does a solar charge controller do?

A solar panel's raw output fluctuates with sunlight intensity, temperature and angle. Left unregulated, it would overcharge your battery, shorten its life, or in extreme cases cause thermal runaway. The charge controller's job is to regulate voltage and current so the battery charges safely and efficiently through its bulk, absorption and float stages.

Every campervan solar system needs one. The question is which type: PWM (Pulse Width Modulation) or MPPT (Maximum Power Point Tracking). Both protect the battery; the difference is how much energy they extract from the panel.

2. How PWM works

A PWM controller is essentially an electronic switch. It connects the panel directly to the battery and rapidly pulses the connection on and off to keep the battery voltage at the right level. Simple, cheap and reliable — but with one fundamental limitation.

Because the panel is clamped to the battery voltage, any excess voltage the panel produces is wasted. A typical 12V "nominal" panel actually outputs around 18–21V at its maximum power point. A PWM controller drags that down to the battery voltage (around 12.5–14.4V), and the difference — roughly 4–7V — vanishes as heat.

3. How MPPT works

An MPPT controller is a DC-to-DC converter. It continuously tracks the panel's optimal voltage/current combination (the "maximum power point") and converts the higher panel voltage down to the battery voltage, trading volts for amps. The energy that PWM throws away as heat, MPPT recaptures as extra charging current.

That same 100W panel, through an MPPT controller, delivers 85–95W of actual charging. The gain is even larger with higher-voltage panels (like 24V or 36V modules), because the voltage "headroom" that MPPT can convert grows.

4. Side-by-side comparison

5. When PWM is enough

PWM controllers still make sense in a few scenarios:

• Tiny systems (≤100W, 12V panel). The absolute energy loss is small — maybe 15–20W — and the cost difference buys you a meal out.
• Matched-voltage panels. If your panel's Vmp is already close to the battery voltage (say, a 12V-nominal panel at 18V Vmp), the MPPT advantage shrinks to ~10–15%.
• Temporary or backup setups. A weekend festival rig or a portable panel kit where cost and simplicity matter more than peak harvest.

If your total solar is under 100W and you use 12V-nominal panels, a quality PWM controller like the Victron BlueSolar PWM is a perfectly reasonable choice at a quarter of the MPPT price.

6. When MPPT pays for itself

For the majority of campervan builds, MPPT is the better investment. Here's why:

• 200W+ systems. At 300W, a 25% efficiency gain means ~75W more delivered power — that's like getting an extra panel for free.
• Higher-voltage panels. 24V or 36V panels (common in residential modules, which are cheaper per watt) are a dead end on PWM, but MPPT handles them perfectly.
• Winter and overcast travel. MPPT squeezes more energy out of weak light because it constantly re-tracks the optimal operating point. In winter conditions, the gain over PWM can hit 30%.
• Full-time living. When every amp-hour matters, the long-term harvest difference easily covers the €100–150 premium in saved generator fuel or campsite hookup fees.

7. Sizing your controller

Controllers are rated by their output current (the amps they push into the battery). To size one correctly:

Then add a 25% safety margin for cold-weather over-production (panels output more voltage — and thus more wattage through MPPT — when cold).

The notation "100/20" means the controller accepts up to 100V open-circuit panel voltage (Voc) and delivers up to 20A charge current. Always check your panel's Voc against the controller's maximum input voltage — exceeding it destroys the controller instantly.

8. Popular models compared

Victron dominates the campervan market for a reason: excellent build quality, Bluetooth monitoring via the VictronConnect app, and a wide range of sizes. Renogy offers strong value if you don't need the Victron ecosystem, and EPEver is the go-to budget option with decent performance.

9. Common mistakes

• Exceeding Voc. Your panel's open-circuit voltage (Voc) must stay below the controller's maximum input voltage — including in cold weather, when Voc rises. Add a 10% cold-weather margin to the datasheet Voc.
• Undersizing the controller. A 20A controller on a 400W/12V system (33A) will throttle output and overheat. Size for the full array plus 25% margin.
• Using PWM with high-voltage panels. A 24V or 36V panel on a PWM controller into a 12V battery wastes 40–60% of the panel's output. If your panels are higher voltage than your battery, you need MPPT.
• Skipping the temperature sensor. Most MPPT controllers adjust charge voltage based on battery temperature. Without the sensor, the controller assumes 25°C, which means overcharging in summer and undercharging in winter.
• Ignoring cable losses. Thick, short cables between panels and controller matter. A 2% voltage drop on 300W is 6W lost — permanently — before the controller even sees the power.
